Total Solar Eclipse August 11th, 1999 Turkey

Sequence Image (click image for larger image)
.
















Images from top to bottom

Panoramic image shot at 1/125th of a second.

Mid Corona shot at 1/8th of a second.

Inner Corona and Prominences shot at 1/125th of a second.


Close up of the Prominence Show.

Right Image: Close up showing Lunar Mountains sillouetted.

This Eclipse remains the best for providing images.
The Sun being at Solar Max. provided an unforgettable
Prominence display.



Eclipse Animation
37 images arranged in sequence.

 Left: Solar Crescent Shadows
 generated by the Tree branches & leaves.


Total Solar Eclipse-August 11th, 1999 Turkey Eclipse Excursion


Eclipse Images

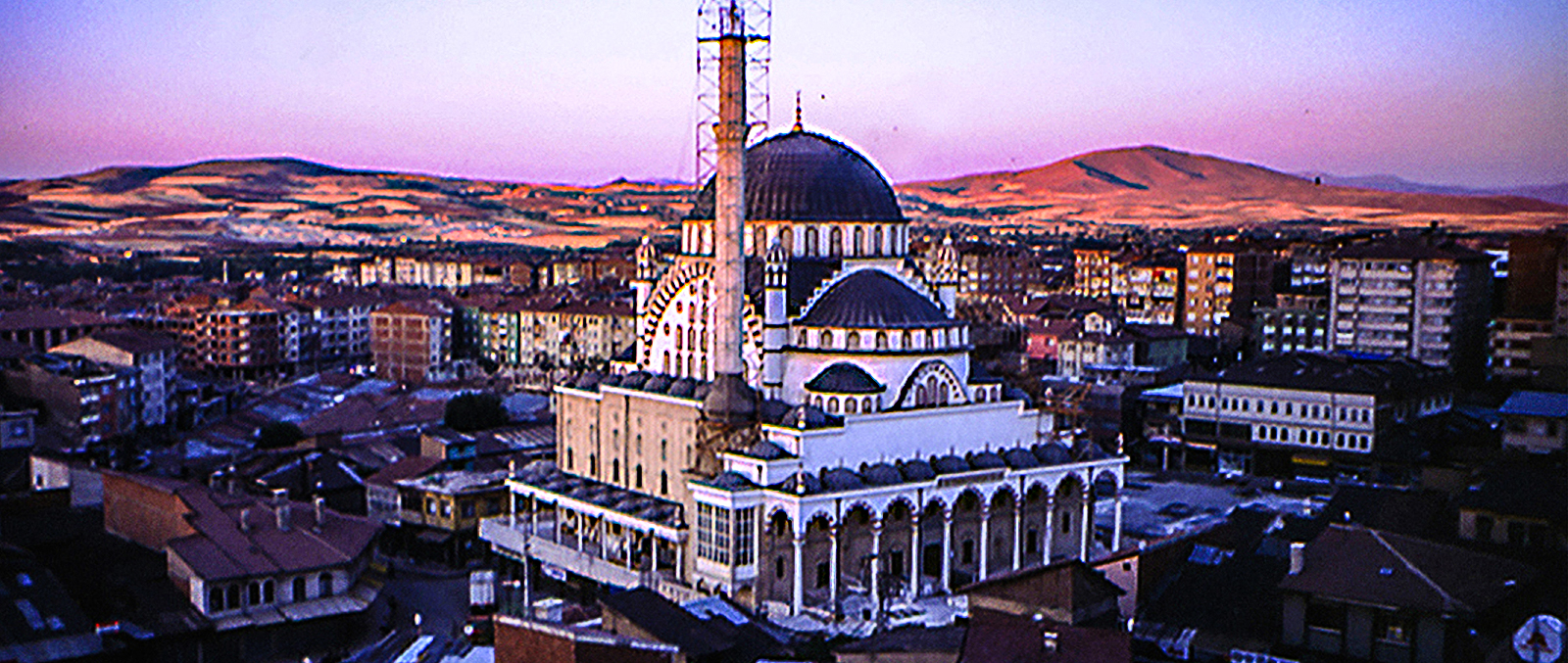

Elizig Turkey-our staging location near Lake Hazar
.
.
  Equipment used
The Telescope used was a 94mm f/6.8.Brandon Refractor on a Losmandy G-11 Equatorial Head, supported by a custom made low profille Mahogany Tripod.   Great lengths were taken to place the equipment into to 2 “carry on" size cases.  Cameras and a Battery acted as Counterweights.

A TeleVue “2x Big Barlow Lens” inserted into the focuser, followed by followed by Extension Tubes provided an effective focal length of 2820mm (f/30).  This yielded a Solar disk image of 26mm in diameter, too large for the 35mm Camera Frame.   The Full Solar Disk images were made by splicing  images together.

A Pentax ZX-M camera body was used for photography.  This is a clever auto wind Camera can shoot up to 2 frames per second if needed.  The film used was 100VS Ektachrome, pushed to 200 ISO.


Above Image:
Mel Bartels & Greg Babcock with Equipment

  Scenes-Lake Hazar


Local Media Coverage



Total Solar Eclipse-August 11th, 1999 Turkey Tour of Istanbul


  The Blue Mosk







Total Solar Eclipse-August 11th, 1999 Turkey Publications


by Littman, Espenak

(Click image for more)
Provided Images for:
Totality-Eclipse of the Sun by: Littman, Espenak, Wilcox-2009
  April Image for
2009 OMSI/Kendall Planetarium-Stellar Skies Calendar

(Click image for more) Provided Images for:
Eclipse: Voyage to Darkness
by David H. Levy-2000


Provided Image for:Sky Publishing's
Glorious Eclipse
Images 2
Slide Collection-2000

Provided Images for:
Passing Through 90 degrees by Cheryl Burkett-Award Winning Poetry Book-2000

.
